Physical Specifications

  • Depth: 110mm (4.33in)

  • Width: 108.6mm (4.27in)

  • Height: 189.68mm (7.47in)

  • Weight: 1.0lbs without battery 2.0lbs with battery

  • Screen Size: 177.8mm (7.0in)


Hardware Specifications

  • Processor: MT6762 Octa-Core

  • RAM: 4GB DDR4

  • Storage: 64GB

  • Battery Life: 16 hours

  • Display: 600x1024 IPS Panel (Portrait)

  • Camera: 8MP

  • USB: USB-C 2.0

  • Bluetooth: Version 5.0

  • Wi-Fi: Dual Band 802.11 (2.4GHz & 5GHz)


Integrated Payment Module

  • Secure MCU: MAXIM 32555

  • NFC Reader: Integrated Contactless Payment Support

  • Magstripe Reader: 3 Track Minimum. Tamper Mesh Protection

  • Chip Card Reader: EMV Slot with Sealed Rubber Cover (Waterproof Design)

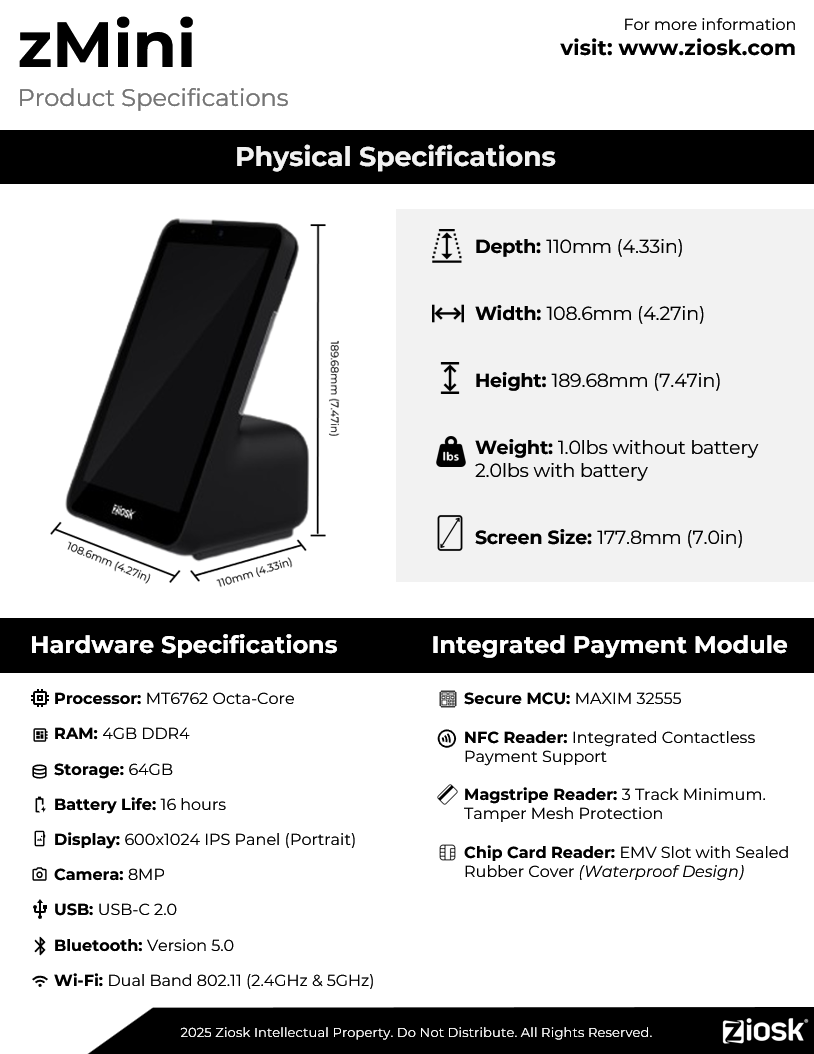

zMini Product Specifications.pdf
